Desktop Label Printer>C series

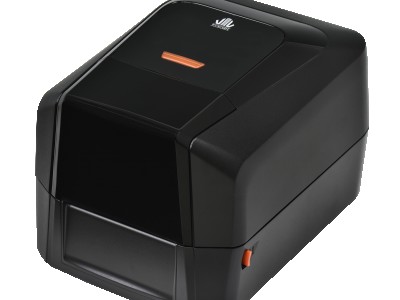

C343C

Economic model, reasonable price, highly efficient printing performance

The C34 series label printer is the most cost-effective model of industrial thermal transfer/direct thermal printers. The C34 series printer not only can print label in text or graphic formats, but owns basic function and convenient operation interface. C34 series label printer can be applied in different fields of industry such as retailing, health care, manufacturing, logistics, warehousing and so on.
The bundled free label design program “WinLabel” provides completed label design tools and barcode resource for user to design ideal label format. WinLabel offers free database function to load in Excel, Microsoft Access, Text file…etc and get required information in the specified positon of label.

  • Long time 12HRs printing without overheat shutdown

  • Max. printing speed 102 mm (4") / Sec

  • Large media loading space 127mm(5" )OD

  • 300 DPI print head

  • Screwdriver-free easy assembling cutter and peeler

  • Clamshell double-walled strong structure and cover closing buffer design

  • Precise printing position with self calibration system

  • Bundled free label design software "WinLabel" supports .dbf, .xls, .sql, .txt database functions

  • Compatible with other printer command language  e.g. ZPL, EPL, DPL, TSPL

  • USB 2.0 interface

Printing method

Thermal Transfer /Thermal Direct

Resolution

300 DPI

Max. print speed

102 mm (4") /SEC

Max. print width

109.77 mm (4.32")

Max. print length

1016 mm (40")

Enclosure

Double-walled plastic

Physical dimension

220mm(W) x 198mm(H) x 288mm(D)

8.66"(W) x 7.8"(H) x 11.3"(D)

Weight

2.5 kg

Label roll capacity

127 mm (5") OD

Ribbon spec.

300m, Max. OD 67 mm, 1" core

Ribbon width

25.4 mm ~ 110 mm (1" ~ 4.3")

Processor

32-bit RISC CPU

Memory

8MB Flash-ROM, 8MB SDRAM

Power

External universal power supply , Input: AC 100-240V, 2.0A, 50-60Hz, Output: DC 24V, 2.5A, 60W

User Interface

1 button

Communication

USB 2.0

Sensors

Reflective gap sensors、Ribbon end sensor、Head open sensor、Paper near end sensor (optional)

Internal fonts

7 kinds of bitmap fonts

Bar code

Barcode
1D barcode:Code 11, Code 39, Code 93, Code 128, Codabar, EAN/JAN-8, EAN/JAN-13, Interleaved 2-of-5, ITF-14, MSI Pleassy, PostCode, Telepen, UPC-A, UPC-E, UCC-128, Channel Code, Code 2 of 5 Data Logic, Code 2 of 5 IATA, Code 2 of 5 Industrial, Code 2 of 5 Matrix, Code 32, ISBN, LOGMARS, Pharmacode, Pharma Zentralnummber
2D barcode:QR Code, Micro QR Code, PDF417, Micro PDF417, Code 16K, Code 49, Aztec Code, Data Matrix, Grid Matrix, MaxiCode, Code One, Han Xin Code, Dot Code, Pharmacode 2-track
GS1 Barcode (without composite code): GS1 QR Code, Data Matrix, ITF-14
GS1 Barcode (with composite code): GS1-128 (UCC/EAN-128), EAN-8, EAN-13, UPC-A, UPC-E, GS1 DataBar Omnidirectional, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded Omnidirectional, GS1 DataBar Expanded Stacked Omnidirectional

Printer language

WPL (ZPL, EPL, TSPL, DPL...auto switch)

Media type

Continuous, die-cut, tag, fan-fold, gap, notch, black mark

Dealer option

Peeler, Cutter, External label stand

Label width

Standard: 15~120mm (0.59"~4.72")

With Cutter: 15~117mm (0.59"~4.61")

External Label Stand: 15~115mm (0.59"~4.53")

Label thickness

0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)

Thick label specified printer: support 0.24 ~ 0.3 mm

Label core

25.4 mm (1")

Label length

5 ~ 1,016 mm (0.2" ~ 40")

Storage condition

-20 ~ 50°C, 10~ 90% (non-condensing)

Operation condition

5 ~ 40°C, 25 ~ 85% (non-condensing)

Safety regulation

CE Class B, FCC Class B, CCC, CB, BIS, KC

Bundled software

WinLabel labelling application, windows printer driver, printer utility, DLL SDK library, EXE executive AP for batch print.
Platform support: Windows XP, Vista, 7, 8, 8.1, 10 and Server 2003, 2008, 2012, 2012R2 (32/64 bit)







Printing method

Thermal Transfer / Thermal Direct

Resolution

203 DPI

Max. print speed

102 mm (4") / sec

Max. print width

108 mm (4.25")

Max. print length

2286 mm (90")

Enclosure

Double-walled plastic

Physical dimension

220mm(W) x 198mm(H) x 288mm(D)

8.66"(W) x 7.8"(H) x 11.3"(D)

Weight

2.5 kg

Label roll capacity

127 mm (5") OD

Ribbon spec.

300m, Max. OD 67 mm, 1" core

Ribbon width

25.4 mm ~ 110 mm (1" ~ 4.3")

Processor

32-bit RISC CPU

Memory

8MB Flash-ROM, 8MB SDRAM

Power

External universal power supply , Input: AC 100-240V, 2.0A, 50-60Hz, Output: DC 24V, 2.5A, 60W

User Interface

1 button

Communication

USB 2.0

Sensors

Reflective gap sensors、Ribbon end sensor、Head open sensor、Paper near end sensor (optional)

Internal fonts

7 kinds of bitmap fonts

Bar code

Barcode
1D barcode:Code 11, Code 39, Code 93, Code 128, Codabar, EAN/JAN-8, EAN/JAN-13, Interleaved 2-of-5, ITF-14, MSI Pleassy, PostCode, Telepen, UPC-A, UPC-E, UCC-128, Channel Code, Code 2 of 5 Data Logic, Code 2 of 5 IATA, Code 2 of 5 Industrial, Code 2 of 5 Matrix, Code 32, ISBN, LOGMARS, Pharmacode, Pharma Zentralnummber
2D barcode:QR Code, Micro QR Code, PDF417, Micro PDF417, Code 16K, Code 49, Aztec Code, Data Matrix, Grid Matrix, MaxiCode, Code One, Han Xin Code, Dot Code, Pharmacode 2-track
GS1 Barcode (without composite code): GS1 QR Code, Data Matrix, ITF-14
GS1 Barcode (with composite code): GS1-128 (UCC/EAN-128), EAN-8, EAN-13, UPC-A, UPC-E, GS1 DataBar Omnidirectional, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded Omnidirectional, GS1 DataBar Expanded Stacked Omnidirectional

Printer language

WPL (ZPL, EPL, TSPL, DPL...Auto Switch)

Media type

Continuous, die-cut, tag, fan-fold, gap, notch, black mark

Dealer option

Peeler, Cutter, External label stand

Label width

Standard: 15~120mm (0.59"~4.72")

With Cutter: 15~117mm (0.59"~4.61")

External Label Stand: 15~115mm (0.59"~4.53")

Label thickness

0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)

Thick label specified printer: support 0.24 ~ 0.3 mm

Label core

25.4 mm (1")

Label length

5 ~ 2,286 mm (0.2" ~ 90")

Storage condition

-20 ~ 40°C, 10~ 90% (non-condensing)

Operation condition

5 ~ 40°C, 25 ~ 85% (non-condensing)

Safety regulation

CE Class A, FCC Class A, CB

Bundled software

WinLabel labelling application, windows printer driver, printer utility, DLL SDK library, EXE executive AP for batch print.
Platform support: Windows XP, Vista, 7, 8, 8.1, 10 and Server 2003, 2008, 2012, 2012R2 (32/64 bit)
